Manifold 30

30 DN: max 5 (8)
PN max. 420 (6000psi)
T max 250°C
(T max 530oC with external spindle thread)
This 3 valve manifold is designed for remote mounting to a transmitter. It has two block valves (+ and - lines) and an equaliser valve.

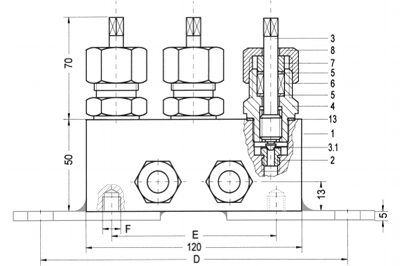

parts list

part no. designation material
1 2 3
1 body A105 316Ti A182-F11;F12
2 interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti A182-F11;F12
5 scraper ring Novapress
6 packing graphite1) PTFE2)
7 gland 1213 316Ti 316Ti
8 union nut 1213 316Ti 303
13 seal mild steel 316Ti

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

scale

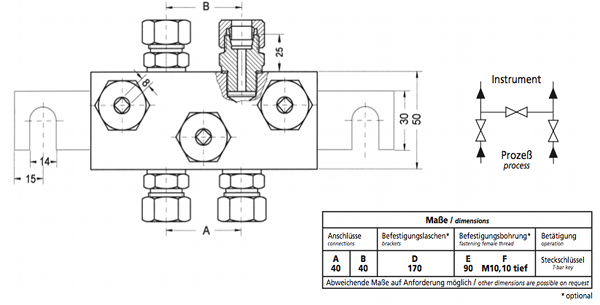

This picture shows e.g. the manifold with inlet and outlet cutting ring connections for 12mm tube. Optional there are brackets or fastening f-thread.

Order no. for this example:

V30?SV12SV12

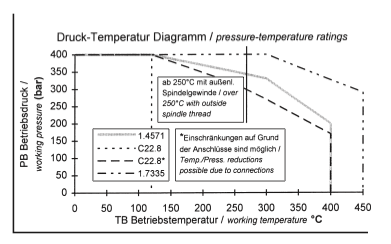

tl_files/bollin/img/products/v/vb30dia-klein.png

order number

V 30


type body number material code inlet-code outlet-code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
3 Mat.: heat resistant steel A182-F 11; F 12
    A external spindle thread
B fastening female thread
F bellow
L bracket
PT german TA-Luft
