Syphons

Syphons according to DIN 16282

type connection material *2) DIN-number order number

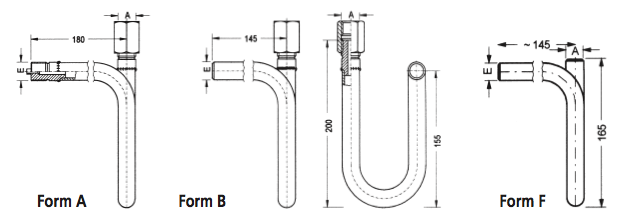

A Syphon U-form DIN16282 form A*1)
E (inlet): G1/2“ right hand thread for adjusting nut
A (outlet): G1/2“ left hand thread with adjusting nut
P235GH-TC1; A106A DIN 16282-A-10St *1) 16282 AG 1
SS DIN 16282-A-20St *1) 16282 AG 2
1.7335; F12   16282 AG 3
B Syphon U-form DIN 16282 form B
E (inlet): but weld end 20 x 2,6
A (outlet): G1/2“ left hand thread with adjusting nut
P235GH-TC1; A106A DIN 16282-B-10St 16282 BG 1
SS DIN 16282-B-20St 16282 BG 2
1.7335; F12   16282 BG 3
F Syphon U-form DIN 16282 form F
E (inlet): but weld end 20 x 2,6
A (outlet): but weld end 20 x 2,6
P235GH-TC1; A106A DIN 16282-C-10St *1) 16282 F 1
SS DIN 16282-C-20St *1) 16282 F 2
1.7335; F12   16282 F 3

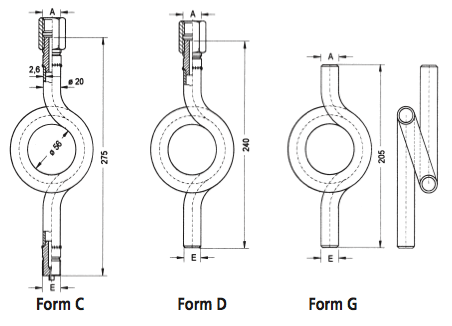

C Syphon circle-form DIN 16282 form C*1)
E (inlet): G1/2“ right hand thread for adjusting nut
A (outlet): G1/2“ left hand thread with adjusting nut
P235GH-TC1; A106A DIN 16282-D-10St 16282 CG 1
1.4571; 316Ti DIN 16282-D-20St 16282 CG 2
1.7335; F12   16282 CG 3
D Syphon circle-form DIN 16282 form D
E (inlet): but weld end 20 x 2,6
A (outlet): G1/2“ left hand thread with adjusting nut
P235GH-TC1; A106A DIN 16282-G-10St 16282 DG 1
1.4571; 316Ti DIN 16282-G-20St 16282 DG 2
1.7335; F12   16282 DG 3
G Syphon circle-form DIN 16282 form G
E (inlet): but weld end 20 x 2,6
A (outlet): but weld end 20 x 2,6
P235GH-TC1; A106A DIN 16282-G-10St 16282 G 1
1.4571; 316Ti DIN 16282-G-20St 16282 G 2
1.7335; F12   16282 G 3

Other connections (e.g. NPT threads) on request.

*1)No longer existent in DIN 16282 dated 1995

Syphons in U-form for horizontal tapping point

Syphons in circular form for vertical tapping point

*2) materials, temperature and pressure range for pipes

material max. working pressure
bar
max. working temperature
°C
10 St steel P235GH
 DIN EN 10216-2
100 120
80 300
63 400
20 St SS, DIN 17456
Rp0,2 190 N/mm²
100 120
80 300
63 400
with material certificate DIN-EN 10204 - 3.1 deliverable
