Flanged Adapter

Flange

Flanges with different connections and dimensions

Examples

material picture outlet material order number
DN25 PN40 Form B1 1

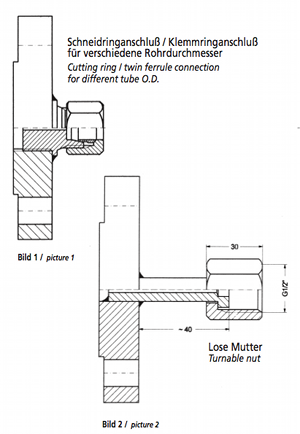

cutting ring connection for 12mm tube

steel (flange c22)

316Ti

AD1FL254SV12

AD2FL254SV12

DN1“600lbs RTJ 1

cutting ring connection for 12mm tube

steel

316Ti

AD1FL160rSV12

AD2FL160rSV12

DN25 PN40 Form B1 2

welded nippel with turnable nut G1/2“

steel

316Ti

AD1FL254LG12

AD2FL254LG12

DN25 PN100 Form B2 3

G1/2“ male left hand thread

steel

316Ti

AD1FL2510GA12l

AD2FL2510GA12l

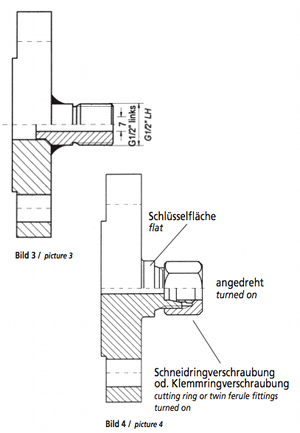

1“ 300Ibs RF 4

turned on twin ferule fitting 12mm

steel

316Ti

AD1FL130KL12kompl

AD2FL130KL12kompl

The types which are shown above are examples. Other types and dimensions on request.
