Transmitter manifolds

parts list

part no. designation material
2
1 body 316L
3 spindle 316Ti
3.1 non rotating plug 316Ti
4 bonnet 316Ti
5 scraper ring Novapress
6 packing PTFE 200°C
1)2)
7 gland 316Ti
8 lock-nut 316Ti
9 T-bar 316Ti
10 screw SS
13 seal 316Ti

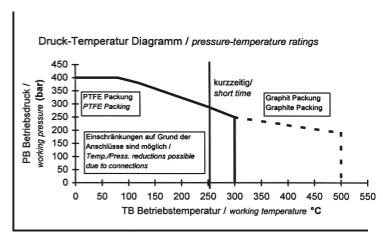

1) On request: graphite; max 550°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250

Order Number

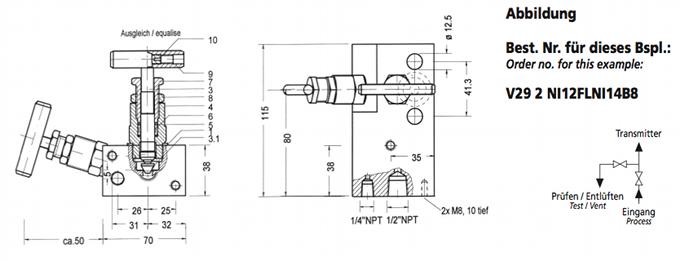

V 29 2 Nl12 FL Nl14 B8

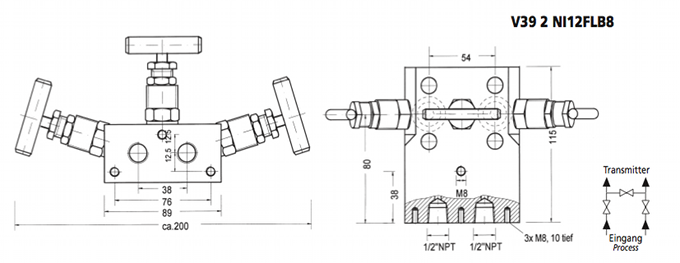

V 39 2 Nl12 FL B8

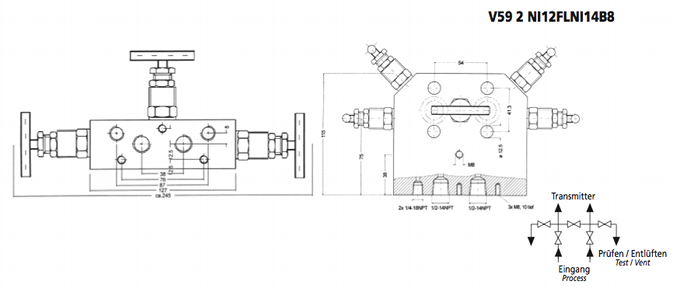

V 59 2 Nl12 FL Nl14 B8
type body number material code inlet-code outlet-code test-/ blow out connection code special characters code


2 Mat.: stainless steel 316L


other materials on request

All materials can be delivered with certificate DIN EN 10204 - 3.1

different connections from standard are possible
F  bellow
E  venting
PT german TA-Luft
