universal bracket for manifolds, wall- or protection case mounting

mounting plate with 2 allen screws M 10 and 2 washer 10,5 diameter

material order number steel galvanized mounting plate VB1 SS mounting plate VB2

universal bracket for manifolds and mounting at a 2“ pipe

mounting plate with 2 allen screws M 10 and 2 washer 10,5 diameter and 2 pieces of fixingbolts 2“ with 4 nuts M8 and 4 washers 8,5 diameter.

material order number steel galvanized  VB1 SS  VB2

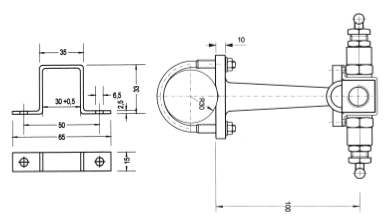

bracket for bar-stock valves

With this bracket bar-stock valves (type B1-B3; page B1-B5) will be mounted at a sheet metal or onto a measuring instrument holder according to DIN 16281 (see side Z6). The bracket could also be welded beneath the valve. material order number SS Laschek2

Screws for Manifolds

dimensions material order number M 10 x 50 DIN EN 24014 (DIN 931) galv. steel Schraube1M1050 SS Schraube2M1050 M 10 x 55 DIN EN 24014 (DIN 931) galv. steel Schraube1M1055 SS Schraube2M1055 M 10 x 60 DIN EN 24014 (DIN 931) galv. steel Schraube1M1060 SS Schraube2M1060 M 12 x 50 DIN EN 24014 (DIN 931) galv. steel Schraube1M1050 SS Schraube2M1050 M 12 x 55 DIN EN 24014 (DIN 931) galv. steel. Schraube1M1255 SS Schraube2M1255 M 12 x 60 DIN EN 24014 (DIN 931) Sgalv. steel Schraube1M1260 SS Schraube2M1260 7/16 - 20 UNF x 2" ANSI 18.2.1 galv. steel Schraube17162 SS Schraube27162 7/16 - 20 UNF x 2 1/4" ANSI 18.2.1 galv. steel Schraube1716214 SS Schraube2716214 7/16 - 20 UNF x 2 1/2" ANSI 18.2.1 galv. steel Schraube1716212 SS Schraube2716212 7/16 - 20 UNF x 3 1/4" ANSI 18.2.1 galv. steel Schraube1716314 SS Schraube2716314 7/16 - 20 UNF x 3 1/2" ANSI 18.2.1 galv. steel Schraube1716312 SS Schraube2716312
